超級電容器種類

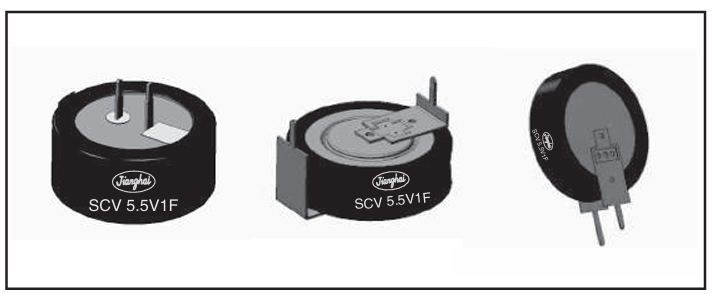

1. COIN EDLC CELL (扣式電容)

優點:

  • 高可靠性
  • 低自放電
  • 低漏電流
  • 小體積
  • 部份規格有SMD可選擇
  • 溫度範圍寬 (-40℃ ~ +85℃)

缺點:

  • 阻抗(ESR)高
  • 不適合大電流放電



Typical application典型應用

  • Computer & peripherals (電腦及周圍設備)
  • DSL modems & routers DSL (調製解調器和路由器)
  • Remote controller Boiler controller Automatic meter reader (遙控器、鍋爐控制器、自動抄表器)
  • Car audio Intelligent instrument (汽車音響、智能儀器)
  • DVD/Blue ray recorder (DVD、藍光紀錄器)
  • Backup power supply of RTC (時鐘記憶電路上儲能元件)





2. RADIAL EDLC CELL (引線式、捲繞式電容)

優點:

  • 成本低
  • 循環壽命長
  • 內阻(ESR)低
  • 高循環效率
  • 高功率密度
  • 高效率充電與放電

缺點:

  • 自放電高於電化學電池
  • 比電化學電池能量密度低
  • 大功率放電有火花發生的危險
  • 工作電壓低
  • 存在介質吸收效應



Typical application典型應用

  • Intelligent instruments:electronic meter、water meter、gas meter、hot meter (各類智能儀表)
  • Communication terminal:RTU/DTU、DTU、FTU、fault current indicator (通訊終端:智能線控終端、智能配電終端、智能饋線終端、故障指示器)
  • Auto electronics:auto recordet、auto door control、audio control、auto diagnosis system、wireless charging (汽車電子:行車紀錄器、汽車門控、音響控制、汽車診斷系統、無線充電)
  • Energy storage:server backup power、motor drive、brake、charging pile、security、fire protection (儲能:伺服器備電、馬達驅動、門禁設備、充電樁、安防、消防)
  • Consumer:Toys、robots、smart home、medical devices (消費類:玩具、機器人、智能家居、醫療設備)

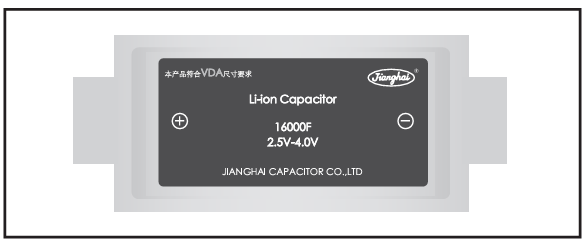

3. SOFT PACK LIC CELL (軟包式電容)

優點:

  • 內阻(ESR)低
  • 低漏電流
  • 循環壽命長
  • 快速充電與放電
  • 高輸出功率
  • 高可靠性

缺點:

  • 工作溫度較低
  • 電容壽命到達後,電容會膨脹(體積約大於原規格10%)



Typical application典型應用

  • Backup power(computer、server、UPS)後備電源(電腦、伺服器、UPS)
  • Medical power supplies(Portable X-ray machine)醫療機器電源(便攜式X光機)
  • Rail transit(軌道交通)
  • Smart power grids(智能電網)
  • Tunnel locomotive、mining locomotive(隧道軌道車、礦用車)
  • Port truck(碼頭車)
  • Pure electric bus(純電動公車巴士)
  • Ferry、sightseeing car、golf cart、AGV and RGV(渡輪、觀光車、高爾夫球車、AGV及RGV)
  • Energy saving elevator(節能電梯)
  • Hybrid power driven engineering machinery and harbor machinery(混和動力工程機械及港口機械)
  • Wind power、solar and other renewable energy storag(風力發電、光伏等可再生能源儲能)
  • Other high power、high energy and high temperature applications(其他對功率、能量和溫度要求比較高的工況應用)





4. RADIAL LIC CELL (LIC鋰離子超級電容)

優點:

  • 低自放電
  • 工作溫度範圍廣(-40℃~85℃)
  • 循環壽命長(約25萬次)
  • 快速充電與放電
  • 高工作電壓3.8V
  • 高可靠性及安全性
  • 電容量是超級電容的2~5倍
  • 同容值比超級電容的體積小
  • 無須BSMI電池法規認證



Typical application典型應用

  • Smart Meter:water meter、gas meter、hot meter(智能儀表:水錶、瓦斯錶、熱水器錶)
  • Scanner(掃描槍)
  • Electric Tools(電動工具)
  • Electric equipment(電力設備)
  • Driving recorder(行車紀錄器)
  • wireless charging smart home remote control(無線充電智能家用遙控器)
  • backup power:IoT Power、Server backup power、ETC(後備電源:物聯網電源、伺服器後備電源、ETC

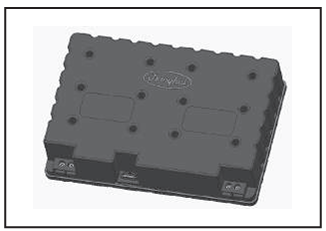

5. LUG/SNAP-IN EDLC MODULE(LIC鋰離子超級電容模組)

優點:

  • 快速充電與放電
  • 無汙染
  • 高可靠性及安全性
  • 高功率密度及效率
  • 使用壽命長



Typical application典型應用

  • Backup power supply for fan rotor system(風力發電機變槳系統後備能源)
  • Energy feedback system(能量回饋系統)
  • Ferry、sightseeing car、golf cart、AGV and RGV(渡輪、觀光車、高爾夫球車、AGV及RGV)
  • Energy saving elevator(節能電梯)
  • Hybrid power driven engineering machinery and harbot machinery(混和動力工程機械及港口機械)
  • Emergency UPS(應急後備電源)
  • Wind power、solar and other renewable energy storage(風力發電、光伏等可再生能源儲能)
